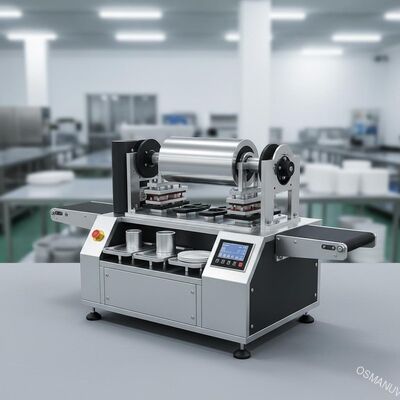

Rotary Heat Transfer Machine or Rotary Heat Press Sublimation Factory For Curved heat transfers or Cups or Plates
Détails sur le produit:
| Lieu d'origine: | La Chine |
| Nom de marque: | Osmanuv |
| Certification: | ISO9001 |
| Numéro de modèle: | OSM-ZY- 1320T |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 30 JOURS DE TRAVAIL |
| Conditions de paiement: | T/T, Western Union |
|
Détail Infomation |
|||
| Nom de produit: | Équipement thermique de transfert | Taille: | 3000 millimètres X 2300 millimètres X 2100mm |
|---|---|---|---|
| Couleur: | Ordinateur blanc/vert | Vitesse: | 1-3 m/min |
| Tension d'alimentation: | 380V 50Hz | Hauteur de travail: | 850mm (taille de ceinture de la terre), taille de rouleau avec l'affichage de position |
Description de produit

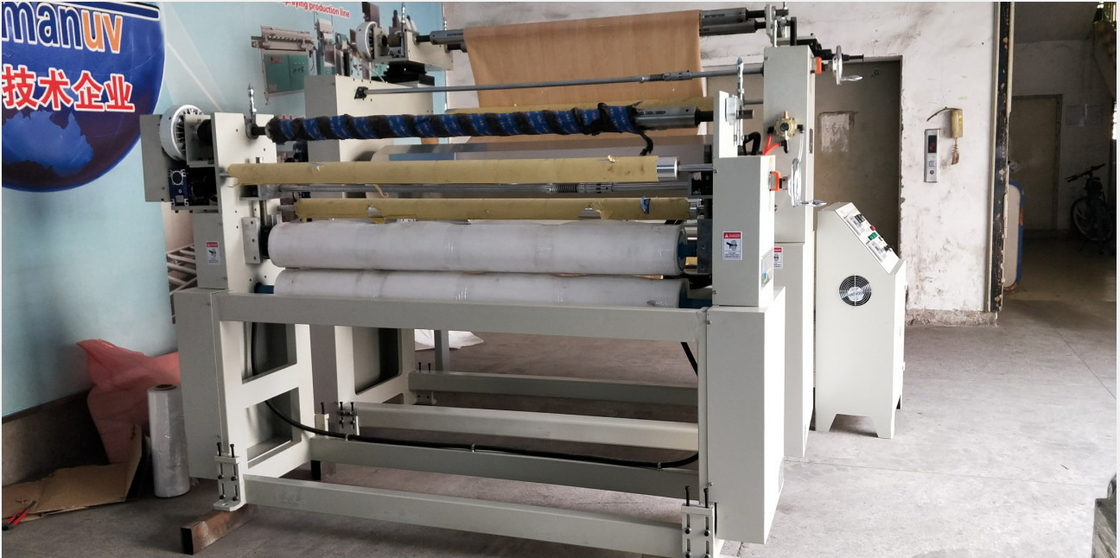

3m/Min 380V Rotary Heat Press Sublimation / Roll To Roll Heat Press
Thermal transfer is also called sublimation, which is to print any pictures such as portraits and landscapes on plain paper or high-precision printing paper with thermal transfer ink, and then heat it up within a few minutes by the corresponding thermal transfer equipment. At a certain temperature, the color of the image on the paper is realistically transferred to the porcelain cup, porcelain plate, porcelain plate, clothes, metal and other materials.
Description:
suitable for all kinds of wood, plastics, ceramics, calcium silicate board, metal and other plane overlay a layer of heat transfer film, so that the plate surface pattern level more clear, more three-dimensional sense.
Describe
| 1 | Mechanical dimension: |
3000mm long * 2300mm wide * 2100mm high. (Subject to the actual size). |
| 2 | Effective working size |
a. Effective width: 1300mm; b: Thickness: 1-60mmc, Length (shortest) : 600mm. |
| 3 | Supply voltage | 380V 50HZ. |
| 4 | Material |
The shell is made of 1.5mm cold-rolled plate bending and welding, the surface is treated with liquid paint, the frame is made of 100*50mm channel steel, and the supporting wall is made of 20cm steel plate (A3 material). |
| 5 | Fitting part: |
the double roll extrusion at the same time, so that the transfer film evenly bonded to the substrate, and through automatic entanglement device to prevent the film wrinkle. |
| 6 | Silica gel press roller | diameter: ￠210mm, length: 1400mm, high quality high temperature resistant silica gel made of Japan, wear-resisting, good elasticity, hardness can be customized according to customer requirements (30 degrees -- 50 degrees) between, can be resistant to all kinds of solvent with high quality coupling transmission, bearing using Japanese NSK bearing, Taiwan Bay Delphi frequency converter control cots speed. |
| 7 | Conveying mode | Adopt cots to transfer, smooth conveying and long service life. |
| 8 | Transportation speed |
1 ~ 3 meters/min. |
| 9 | Working height: | 850mm (belt height from ground), roller height equipped with position display. |
| 10 | Electrical appliances |
OMRON relay, Siemens motor, Delta frequency converter, reducer, CHNT contactor, delay using CKC brand, switch using Japan Wazumi company production, all in line with CE standard. |
| 11 | Safety device |
The machine has leakage circuit breaker, motor overload protection, abnormal emergency switch, control line fuse and other compliance with international safety standards. |
FAQ
Q: Are you trading company or manufacturer?
A: We are a manufacturer owns foreign trade independent import and export rights. Our factory is located in Guangdong, China.
Q: How can I know your machine has good quality?
A: Firstly, we will have your samples for a trial on our machines, and make a video for you to watch the testing, factory visit is also available. Moreover, our products are widely used in China, Southeast Asia, South America, and Europe.
Q: What certifications do you have?
A: Fully in accordance with the GMP & ISO standard production and our products have passed CE certification for exporting.
Q: What is your Quality Warranty?
A: One year warranty; Lifelong Maintenance and Technical Support.
