Spot UV Curing Machine for Selective Area Curing | High Flexibility
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | Osmanuv |
| Certification: | ISO9001 |
| Numéro de modèle: | OSM-UV-620 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 set |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 30 à 45 jours |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | Négociation |
|
Détail Infomation |
|||
| Fonction: | Machine de séchage à l'encre UV | Dimensions globales: | 1900/1530/1410 mm |
|---|---|---|---|
| Le style d'impression: | Machine d'impression numérique | Origine: | CHINE |
| Tension: | 220V | Matériel de revêtement: | Vernis UV |
| Zone de demande: | Impression à l'écran à l'aide d'encre UV | Type de plaque: | Machine de durcissement UV |
| Mettre en évidence: | spot UV curing machine for selective area,UV curing machine with high flexibility,selective UV curing machine with warranty |
||
Description de produit
Spot UV Curing Machine for Selective Area Curing | High Flexibility
1. Composition of Production Line

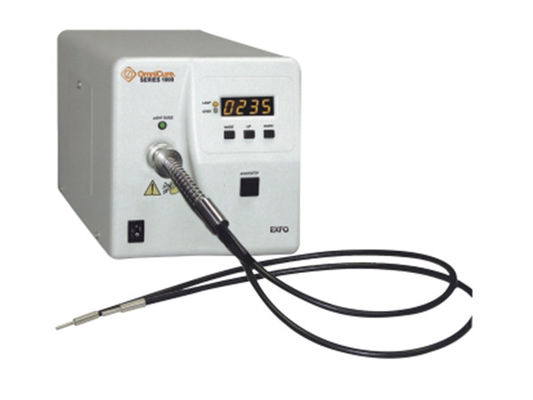

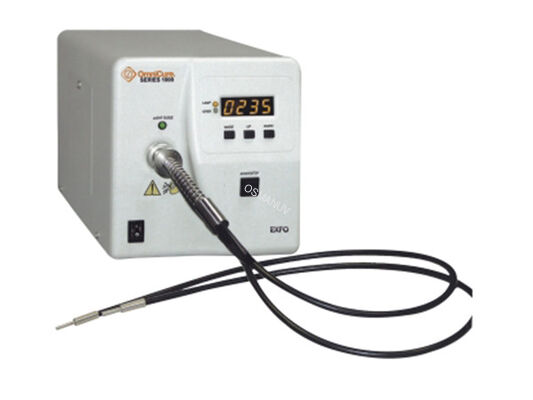

This flexible setup typically includes: a manual or automated positioning stage, a spot UV curing lamp head (with light guide), a benchtop power supply and control unit, and a fume extractor (optional).
2. Product Description
This spot curing machine is designed for precision curing in selective areas on electronic components, such as fixing specific components, bonding wires, or repairing coatings. It delivers a focused, high-intensity beam of UV light for fast and localized curing without affecting surrounding areas.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | UV-SPOT50 (Standard Model, Customizable) |
| UV Source | Mercury Vapor Lamp / LED (Customizable) |
| Spot Size | 3mm - 15mm in diameter (via light guides, Customizable) |
| UV Intensity | Up to 8000 mW/cm² (Adjustable) |
| Curing Cycle | 0.1 - 999.9 seconds (Digital Timer) |
| Lamp Lifespan | 1000 hours (Mercury) / >20,000 hours (LED) |
| Operation Mode | Benchtop / Robotic Arm Integration (Customizable) |
4. Application
Best suited for LOCA (Liquid Optically Clear Adhesive) curing for displays, micro-encapsulation, and precise adhesive bonding in MEMS and camera modules.
5. Customization

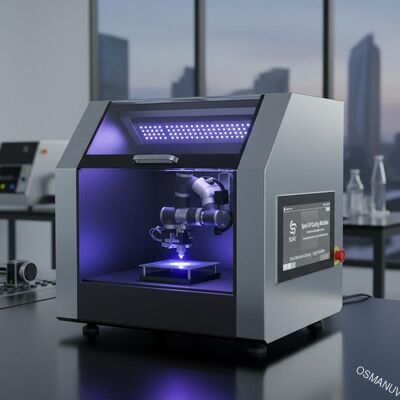

We provide extensive customization on the spot size, UV intensity profile, and integration with XYZ stages or robotic arms for fully automated precision curing.
6. Feature
-
Pinpoint accuracy for selective area curing.
-
Adjustable intensity and timer for precise process control.
-
Compact and ergonomic design.
-
Ideal for R&D, low-volume production, and repair work.
7. Support and Services
Our support includes on-site calibration, application testing, and priority technical assistance.
8. Packing and Shipping
The unit is packed in a durable foam-insulated box within a wooden crate to prevent transit damage.
9. FAQ
-
Q: What is the minimum spot size achievable?
-
A: With specialized light guides, we can achieve a spot as small as 1mm, customized for your application.
-
-
Q: Can it be used in a cleanroom environment?
-
A: Yes, we offer customized cleanroom-compatible models.
-
