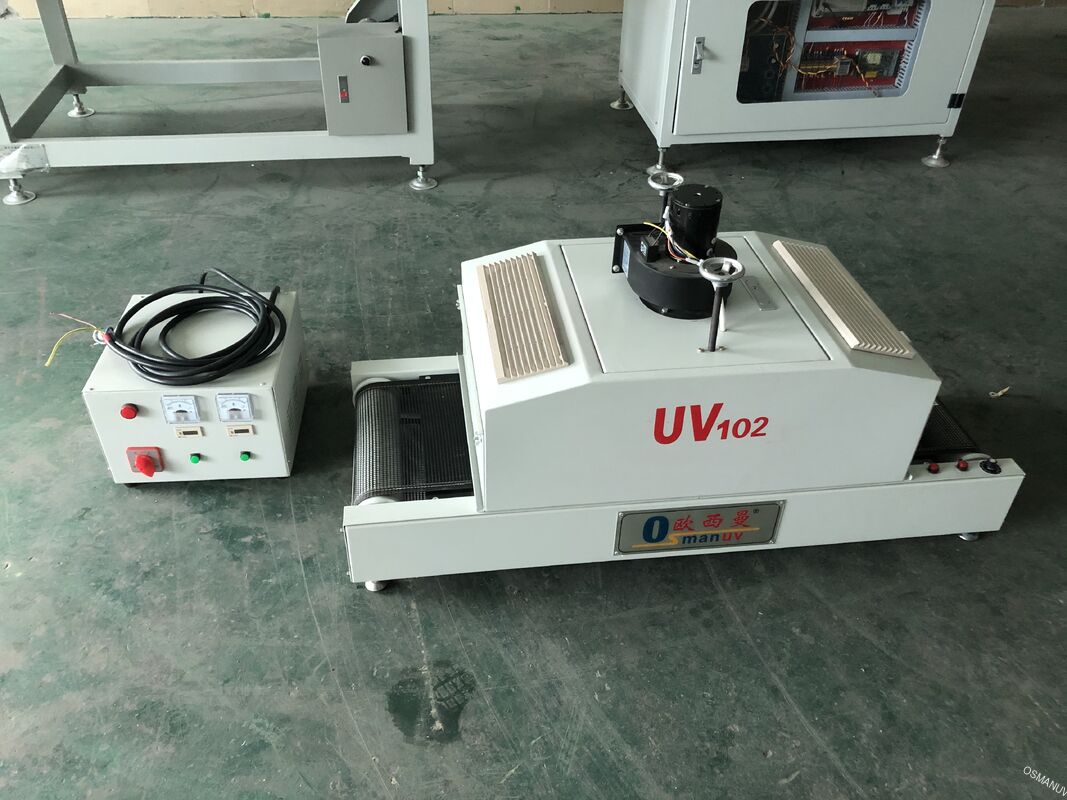

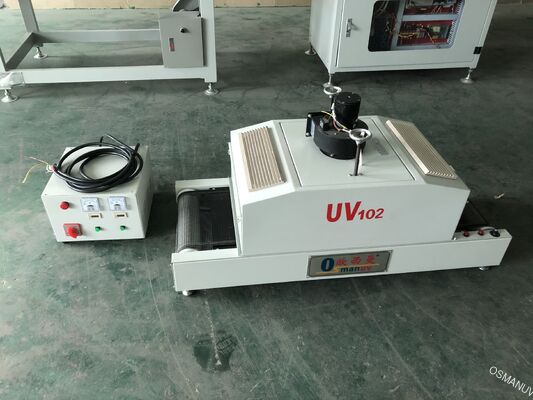

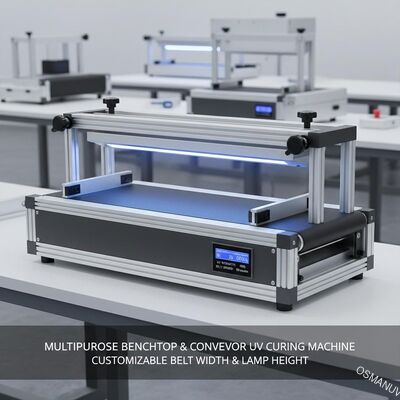

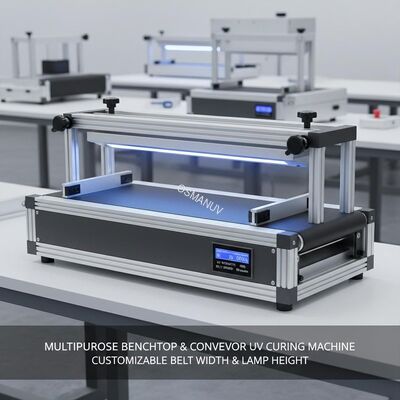

MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | OSMANUV |
| Certification: | ISO9001 |
| Numéro de modèle: | OSM-UV-102 |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Emballage en bois |
| Délai de livraison: | 30-45 jours |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | Négociation |
|
Détail Infomation |
|||
| Transporter des matériaux: | Ceinture en mailles en téflon | Mode de livraison: | Convoyeur à chaîne |
|---|---|---|---|
| Traitement de la profondeur: | 5-20 mm | Forme: | en forme de disque |
| Température de fonctionnement: | 0°C - 40°C | Taille du boîtier d'alimentation: | 310*155*130mm |
| Température ambiante: | 0ºC-50ºC | marque de puce: | Séoul/San an/LG |
| Mettre en évidence: | benchtop UV curing machine,customizable conveyor UV curing machine,UV LED curing machine with adjustable belt |
||
Description de produit
MULTIPURPOSE BENCHTOP & CONVEYOR UV CURING MACHINE -CUSTOMIZABLE BELT WIDTH & LAMP HEIGHT
Product Description
This UV curing machine instantly dries and cures UV varnishes, inks, glues, and coatings on various substrates including paper, plastic, wood, glass, metal, and electronics. It uses high-intensity mercury UV lamps or energy-saving LED UV modules to achieve fast, tack-free curing without heat damage. Ideal for screen printing, digital printing, adhesive bonding, and optical coating lines. The system is fully customizable in lamp type, conveyor speed, curing zone length, and cooling method.
Composition of Production Line
-
Infeed Conveyor (adjustable speed)
-
UV Lamp Housing (mercury or LED)
-
Curing Chamber with Reflector System
-
Cooling Unit (air or water)
-
Exhaust & Ozone Extraction System
-
Outfeed Conveyor
-
PLC HMI Control Panel
Technical Parameters
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Conveyor Width | 300mm / 650mm / 1000mm | ✅ Up to 2000mm |
| UV Lamp Power | 1kW – 24kW (mercury) / 40W – 400W/cm (LED) | ✅ Mixed lamp types |
| Conveyor Speed | 0.5 – 30 m/min | ✅ Up to 80 m/min |
| Peak Wavelength | 365nm (LED) / 250-450nm (mercury) | ✅ 395nm, 405nm LED |
| Cooling Method | Air cooling (standard) | ✅ Water cooling |
| Curing Distance Adjustable | 20 – 150 mm | ✅ Motorized height adjustment |
| Power Supply | 220V / 380V / 50-60Hz | ✅ Custom voltage |
Application
-
Screen & pad printing – UV ink curing
-
Adhesive bonding (electronics, medical devices)
-
Optical film & lens coating
-
Wood & furniture UV varnish
-
3D printing post-curing
-
PCB solder mask & conformal coating
-
Glass decoration & metal printing
Customization
We offer full customization including:
-
Conveyor width, length, and belt material (Teflon, mesh, magnetic)
-
Mercury or LED UV lamps with selectable wavelengths (365/385/395/405nm)
-
Single or multiple lamp zones for staged curing
-
Height-adjustable lamp housing for different product thickness
-
Nitrogen inerting system for oxygen-sensitive curing
-
Split conveyor for integration into existing production lines
-
Custom machine color, control software, and safety shielding
Feature
-
Instant on/off – no warm-up time (LED version)
-
High peak irradiance up to 20 W/cm²
-
Low heat emission protects heat-sensitive materials
-
Digital power control from 10% to 100%
-
Ozone-free LED option for clean indoor use
-
Over-temperature & lamp failure protection
-
Modular design for easy maintenance
Support and Services
-
Free sample curing test with report
-
Remote video support & on-site commissioning
-
18 months warranty (LED lamps: 20,000h)
-
Spare parts available locally or via 48h air shipment
-
Training manual & operational video library
Packing and Shipping
-
Packing: Anti-rust film + shockproof foam + sealed plywood case
-
Shipping: FOB Shanghai / Guangzhou / Ningbo
-
Lead time: 15–30 working days (depends on customization)
-
Shipping methods: Sea, air, rail (Europe/Asia)
FAQ
Q1: Can you customize the curing width for a 150mm product?
A: Yes. We fully customize conveyor width from 100mm to 2000mm, including lamp length matching.
Q2: Which is better for plastic film – LED or mercury?
A: LED UV is better because it emits almost no infrared heat, avoiding film deformation. Both types are customizable.
Q3: Can this machine cure dark or black UV ink?
A: Yes, but high-power mercury lamps or specific 395nm LED with high irradiance are recommended. We can customize lamp configuration accordingly.
