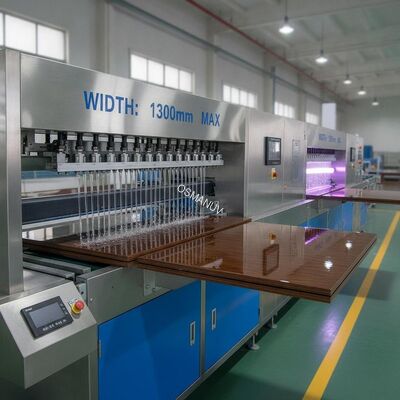

Curtain Coating Line for Flat Furniture & Wood Panels – Customizable Width up to 1300mm with High-Gloss UV Finish

This customizable curtain coating line uses a free-falling liquid curtain (or "veil") to apply a uniform coating layer onto flat or profiled substrates in a non-contact, high-speed continuous process. Available in flat furniture, high-speed roll-to-roll, and multi-side profile configurations.

Unlike roller or spray coating, curtain coating is a pre-metered, non-impact process that delivers excellent coverage at lower coat weights without scratching or film-splitting defects. It is widely used for achieving high-gloss mirror finishes on wood panels and for applying functional coatings on paper and film substrates.

Working principle: Coating is pumped to the curtain head and forms a continuous falling curtain (or "veil") between two adjustable knives (or over a weir). The substrate passes beneath the curtain at a controlled speed; the liquid film transfers uniformly onto the surface. With multi-layer capability, the system can apply several functional layers in a single pass, optimizing cost and performance.

• Furniture industry: High-gloss UV topcoats on flat cabinet doors, shelves, and tabletops
• Flooring: Floorboards, wood composite, and decorative panels
• Paper & packaging: Barrier coatings, PSA label stock, specialty papers
• Building materials: MDF panels, wall panels, door skins
• Automotive & electronics: Functional film coatings
• Irregular profiles: Window frames, decorative trims, 3-sided/4-sided coated profiles

This curtain coating line is highly customizable to meet your specific production requirements:

• Coating width: Customizable from 600mm to 2000+mm
• Coating head type: Gravity head (low maintenance, easy operation) vs. Pressure head (high precision, high speed) - customizable
• Number of heads: Single-head, twin-head, or multi-layer configurations
• Curing system: UV, IR, hot air drying, or multi-stage combination - customizable
• Substrate handling: Flat panels (conveyor belt) or roll-to-roll (unwind/rewind) - customizable
• Profile coating: 3-side or 4-side coating with adjustable head angles
• Coating supply: Constant-temperature tank with viscosity control, deaeration and bubble-removal system
• Automation: Manual, semi-automatic, or fully automatic with IoT remote monitoring
• Line length: Customizable from 10m to 30m+ depending on drying/curing requirements

• Non-impact coating: No scratching, no film splitting, fewer sheet breaks
• Excellent uniformity: Consistent coating in both machine direction and cross-web direction
• High-speed capability: Up to 1000 m/min for large-scale industrial applications
• Multi-layer capability: Apply several functional layers in a single pass
• Contour coating: Virtually 100% coverage at low coat weights - ideal for barrier applications
• Precise coat weight control: Adjustable pump flow rate for thickness accuracy
• Environmentally friendly: Minimal material waste, precise thickness control
• Wide viscosity & coat weight range: Single head accommodates various formulations
• Built-in deaeration & anti-bubble system: Ensures defect-free curtain and even film surface
• Easy maintenance: Sealed bearings, solvent-resistant PU belts, quick-clean head design

• Free process consultation - send your substrate and coating for trial coating
• Custom layout design for your production floor
• On-site installation and commissioning (customizable support packages)
• Operator training program included
• Remote troubleshooting via video call or IoT monitoring
• 12-month warranty on mechanical components (consumables: blades, belts excluded)
• Spare parts availability from regional warehouses
• Lifetime technical support via phone, email, or chat

• Packing: Anti-rust film + reinforced plywood/wooden case for main body and control cabinet; foam padding for fragile components (control panel, sensors)
• Standard model lead time: 30-45 days after order confirmation
• Custom configuration lead time: 30-60 days (longer for custom widths or multi-head configurations)
• Shipping: FOB Shanghai / CIF by sea, air, or rail
• Customizable: Export crating, custom labeling, destination port documentation
