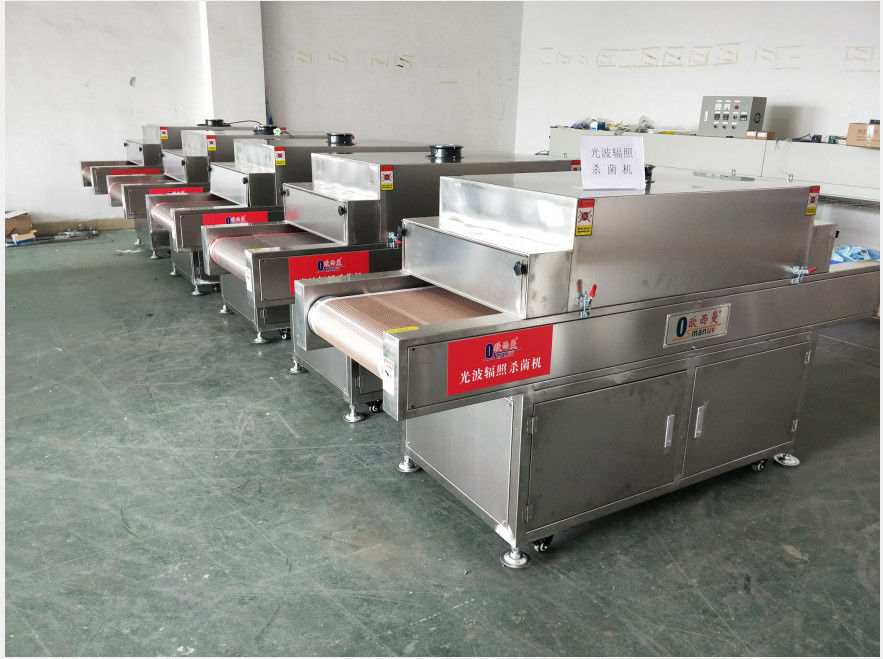

High-Speed UV Sterilization Machine for Food Packaging | Continuous Inline Disinfection
Détails sur le produit:
| Lieu d'origine: | CHINE |
| Nom de marque: | OSMANUV |
| Certification: | ISO9001 |
| Numéro de modèle: | OSM-UVC20-500A |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 set |
|---|---|
| Prix: | negotiable |
| Détails d'emballage: | Boîte en bois |
| Délai de livraison: | 30 à 45 jours |
| Conditions de paiement: | T / t |
| Capacité d'approvisionnement: | Négociation |
|
Détail Infomation |
|||
| Pouvoir de travail: | 10 kW | Type de ceinture: | Arête de poisson |
|---|---|---|---|
| Note automatique: | Automatique | Emballer: | Casse en bois |
| Source légère: | Lumière UV | Vitesse de relâchement: | Réglable |
| Dosage de dosage: | 164mm | Façon de sécher: | Ultra-violet - durcissable |
Description de produit
High-Speed UV Sterilization Machine for Food Packaging | Continuous Inline Disinfection
1. Composition of Production Line
-
Automated conveyor belt system
-
UV-C lamp arrays (germicidal wavelength)
-
Reflective aluminum chamber
-
Cooling exhaust system
-
PLC control panel
2. Product Description
This high-speed UV sterilization tunnel is engineered for continuous disinfection of food packaging materials (e.g., plastic trays, films, containers). It utilizes UV-C radiation to eliminate 99.9% of pathogens without chemicals, ensuring food safety compliance for high-volume production lines.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | UV-FP2000 (Standard Model, Customizable) |
| UV Wavelength | 254 nm (UV-C) |
| Conveyor Width | 400-1200 mm (Customizable) |
| Lamp Life | 9,000 hours |
| Line Speed | 5-20 m/min (Customizable) |
| Power Supply | 380V/50Hz (3-phase) |
4. Application
-
Plastic container sterilization
-
Food film and tray disinfection
-
Pre-filled packaging decontamination
5. Customization
-
Fully customizable tunnel length and lamp configuration
-
Tailorable conveyor material (FDA-approved)
6. Feature
-
Instant on/off, no warm-up required
-
Energy-efficient UV-C lamps
-
Compliance with FDA and EFSA regulations
7. Support and Services
-
Installation supervision
-
12-month warranty
-
UV intensity calibration service
8. Packing and Shipping
-
Weather-proof wooden cases
-
Air freight available
9. FAQ
-
Q: Can it handle heat-sensitive packaging?
A: Yes, UV sterilization is cold process – customizable exposure times prevent heat damage. -
Q: What maintenance is required?
A: Lamp replacement every 9,000 hours; quartz sleeve cleaning every 3 months.
