Description de produit
R&D Spin Coater for Molded Pulp Internal Coating | Lab Precision Testing Machine
1. Composition of Production Line

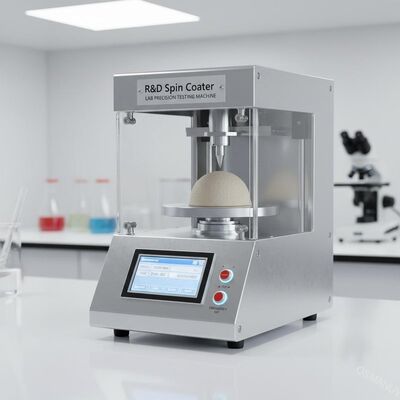

A compact lab unit includes: a programmable spin coater, vacuum chuck for sample fixation, manual syringe dispenser, integrated drip tray, and a digital control panel.
2. Product Description
This R&D spin coater is engineered for laboratories and R&D centers to develop and optimize internal coating formulations (e.g., water-resistant, oil-proof) for molded pulp products like plates and food containers. It enables precise simulation of full-scale production parameters for accurate pilot testing.
3. Technical Parameters
| Parameter | Details |
|---|---|
| Model | SC-RD100 (Standard Model, Customizable) |
| Chuck Size | Standard 100mm - 300mm (Fully Customizable) |
| Spin Speed Range | 100 - 8,000 RPM (Programmable) |
| Speed Accuracy | ± 1% |
| Sample Thickness | Up to 50mm |
| Control Interface | 7-inch Touch Screen with recipe storage |
| Power Requirements | 110V / 220V, 50/60 Hz (Customizable) |
4. Application
Ideal for developing and testing barrier coatings (water, oil, grease) on molded pulp tableware, food packaging, and industrial packaging prototypes.
5. Customization
We offer fully customizable vacuum chuck designs to fit your unique molded pulp sample geometry (plates, bowls, trays). Software capabilities and dispensing systems can also be tailored.
6. Feature
-
High-precision motor for repeatable results.
-
Programmable multi-step spin profiles (acceleration, time, speed).
-
Compact and robust design for lab environments.
-
Minimal coating material consumption, ideal for testing expensive formulations.
7. Support and Services
We provide installation guidance via video call, operational training, and a 12-month warranty. Application support is available.
8. Packing and Shipping
The unit is securely packed in a foam-insulated wooden crate to prevent damage during transit. Shipping via air or sea is available.
9. FAQ
-
Q: What is the minimum sample size it can handle?
-
A: With a customized small chuck, it can handle samples as small as 50mm in diameter.
-
Q: Can we test different coating viscosities?
-
A: Absolutely. The programmable spin curves allow you to optimize parameters for a wide range of coating viscosities.
