INDUSTRIAL SINGLE-STATION SPIN COATER WITH ±1% UNIFORMITY – CUSTOMIZABLE ACCELERATION & DISPENSE CONTROL
Détails sur le produit:
| Lieu d'origine: | Chine |
| Nom de marque: | OSMANUV |
| Certification: | ISO9001 |
| Numéro de modèle: | Spécification |
Conditions de paiement et expédition:
| Quantité de commande min: | 1 ensemble |
|---|---|
| Prix: | Négociable |
| Détails d'emballage: | Emballage en bois |
| Délai de livraison: | 30-45 jours |
| Conditions de paiement: | T/T |
| Capacité d'approvisionnement: | Négociation |
|
Détail Infomation |
|||
| Condition: | Nouveau | Type entraîné: | Électrique, autre, mécanique |
|---|---|---|---|
| Matériel d'emballage: | Bois, plastique, métal, papier, verre | Type d'emballage: | Cas, cartons, film, paquet plus bois, sacs |
| Garantie: | 1 an, un an, 12 mois | Couleur: | Vous pouvez décider, arc-en-ciel et ainsi de suite, doré, personnalisé, argenté |
| Usage: | Machine de revêtement UV ponctuel, protection des impressions numériques | Matériel: | PP, matériau laser auto-adhésif, verre de bouteille, métal, PVC |
| Mettre en évidence: | industrial spin coater with ±1% uniformity,single-station spin coater customizable acceleration,pulp molding coating machine dispense control |
||
Description de produit
INDUSTRIAL SINGLE-STATION SPIN COATER WITH ±1% UNIFORMITY – CUSTOMIZABLE ACCELERATION & DISPENSE CONTROL
Product Description

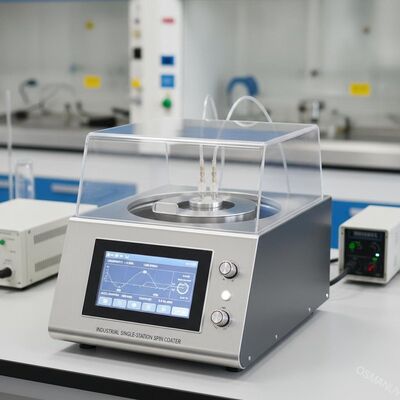

This single-station spin coater is designed for precise and uniform deposition of photoresist, polymers, sol-gel materials, nanoparticles, and other functional liquids onto substrates ranging from small fragments to 8-inch wafers. The system uses a high-stability brushless DC motor with programmable speed and acceleration profiles, ensuring repeatable thin-film coating results. Ideal for semiconductor R&D, MEMS fabrication, perovskite solar cells, and optical coating applications. The system is fully customizable in chuck size, bowl material, motor specifications, and optional heating or UV curing modules.
Composition of Production Line
-

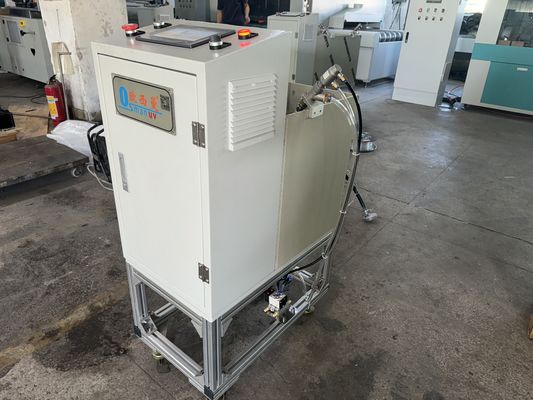

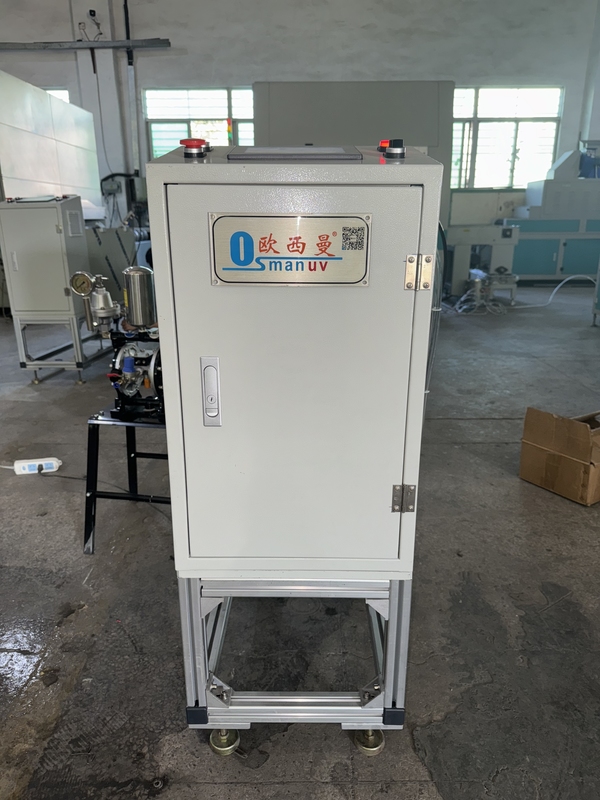

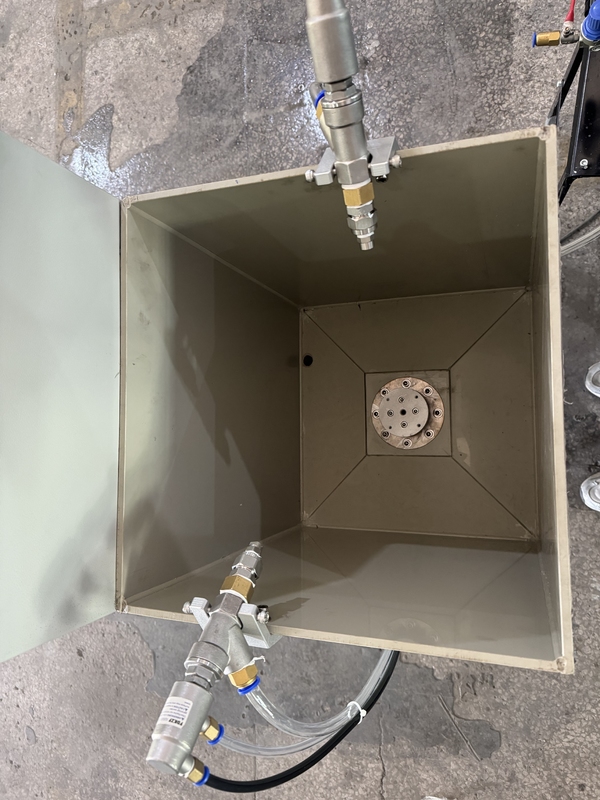

Spin Coating Main Unit (single-bowl design)
-
Vacuum Chuck with Substrate Adapter Kit
-
Programmable Digital Controller (Touchscreen HMI)
-
Oil-Free Vacuum Pump (≥60 L/min)
-
Automatic or Manual Dispense System (syringe/nozzle)
-
Exhaust & Drain Port Assembly
-
Nitrogen Purge Inlet for Motor Seal Protection
-
Optional: Integrated Hotplate / UV Curing Module
Technical Parameters
| Parameter | Standard Range | Customizable Option |
|---|---|---|
| Substrate Size | 10mm – 200mm (8") | ✅ Up to 450mm (18") |
| Spin Speed Range | 100 – 12,000 rpm | ✅ Up to 15,000 rpm |
| Speed Accuracy | ±1 rpm | ✅ ±0.1 rpm |
| Acceleration Range | 100 – 30,000 rpm/s | ✅ Programmable per segment |
| Motor Type | Brushless DC | ✅ Servo motor option |
| Bowl / Chamber Material | Natural Polypropylene | ✅ PTFE / Stainless Steel / Aluminum |
| Program Storage | 12 programs, 6 segments each | ✅ 200 programs, 40 segments each |
| Spin Time Range | 1 – 999 seconds | ✅ Up to 45 hours per step |
| Vacuum Requirement | 25 – 28 inHg | ✅ Adjustable vacuum level |
| Nitrogen Purge | 60 – 70 PSIG | ✅ CDA or inert gas |
| Power Supply | 220V / 50-60Hz / Single Phase | ✅ 110V / 380V available |
Application
-
Semiconductor & MEMS – Photoresist coating for lithography
-
Perovskite & Organic Solar Cells – Thin-film deposition
-
Optical Coatings – Anti-reflective and filter layers
-
Biomedical Devices – Bio-polymer and drug-eluting coatings
-
Graphene & 2D Materials – Uniform dispersion coating
-
OLED & Quantum Dots – Emissive layer deposition
-
Glass & Ceramic Coating – Sol-gel and protective layers
Customization
We offer full customization including:
-
Vacuum chuck size and shape (round / square / fragment, 3mm to 450mm)
-
Bowl material: PTFE, Teflon®, stainless steel, or aluminum for chemical resistance
-
Motor upgrade: Servo motor with higher precision and extended speed range
-
Integrated modules: Hotplate (up to 300°C), UV curing (365nm/395nm LED)
-
Automatic dispense system: Programmable syringe pump or spray nozzle
-
Exhaust system: Active chemical fume extraction with HEPA filter
-
Software: Custom recipe management, data logging, and remote control
-
Multiple bowls for quick material changeover without cross-contamination
Feature
-
±1% film thickness uniformity across entire substrate
-
Instant acceleration up to 30,000 rpm/s for sharp coating profiles
-
Touchscreen PLC with real-time speed & time display
-
Vacuum interlock – automatically stops if vacuum drops below threshold
-
Anti-drip and splash-resistant bowl design
-
Nitrogen purge extends motor life and protects sensitive coatings
-
Compact benchtop footprint saves laboratory space
-
ESD-safe construction for sensitive electronic materials
Support and Services
-
Free sample coating test with detailed uniformity report
-
On-site installation & operator training (optional)
-
24 months warranty on motor and controller
-
Lifetime remote technical support via video call / email
-
Spare parts kit included (vacuum seals, O-rings, fuses)
-
Custom chuck fabrication for non-standard substrates
Packing and Shipping
-
Packing: Anti-static foam + vacuum-sealed bag + reinforced export plywood case
-
Shipping: FOB Shanghai / Shenzhen / Guangzhou
-
Lead time: 10 – 25 working days (depends on customization level)
-
Shipping methods: Air freight (for small units), sea freight (for industrial systems), express courier (DHL/FedEx)
FAQ
Q1: Can you customize the chuck for a non-standard square substrate (100mm x 100mm)?
A: Yes. We fully customize any chuck shape and size, including square, rectangular, and irregular fragments up to 450mm.
Q2: What is the minimum and maximum coating thickness achievable?
A: Typically 0.1µm to 200µm depending on material viscosity and spin speed. We can customize spin profiles to optimize thickness for your specific coating material.
Q3: Does this spin coater work with high-viscosity materials like thick photoresist?
A: Yes. The servo motor option provides higher torque for thick materials. We can also customize the dispense nozzle and pre-spin delay.
